Liner Vibrating Screen

Site:Home -- Product -- Liner Vibrating Screen

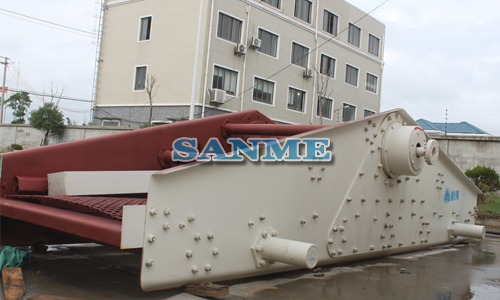

ZK series Liner Vibrating Screen absorbs German advanced technology with unique eccentric structure. It is used in coal, metallurgy, electric power, building materials etc. Liner Vibrating Screen is suitable to dewater, demud, demedium and classifying and dry material of fine and medium size.

Straight Vibrating Screen

Features and Technology Advantages of ZK Series Linear Vibrating Screen:

1.Use the unique eccentric structure to produce powerful vibrating force.

2.The beam and case of screen are connected with high strength bolts without welding.

3.Simple structure and easy maintenance.

4.Adopting tire coupling and soft connection makes operation smooth.

5.High screen efficiency, great capacity and longer service life.

After long-time practice, it has been proven that the screen is of great screen capacity, reasonable technical data, structure with high strength and rigidity, high standardization and universalization, reliable operation, low noisy and easy maintenance.

Working principle of ZK Series Linear Vibrating Screen:

Linear vibrating screen is driven by double motors which make the motions of synchronous and reverse rotation, and the exciting force produced by eccentric block is offset in parallel to the motor axis direction while it is summed to the resultant force in a direction perpendicular to the motor axis, thus the screen machine motion trajectory is a straight line. The two motor shafts shaped a slope angle with the screen surface combine with the resultant force of the exciting force and the gravity of materials, which throw the materials forward in a straight way and achieve the purpose of sifting and grading. It can be used in the production line to materialize the automatic operation. Meanwhile, it features low consumption, high efficiency, simple structure, easy maintenance, fully-closed structure and non dust overflow, etc.

Straight-line Vibrating Screen

Technical Data of ZK Series Linear Vibrating Screen:

Model Screen Surface Max Feeding Size (mm) Motor Power (kw) Capacity (t/h) Weight (t)
Deck Size (m2) Mesh (mm)
ZK1022 2.25 0.25~50 ＜250 3×2 4.5-90 2.2
ZK1230 3.6 0.25~50 ＜250 4×2 7.2-144 2.6
ZK1237 4.5 0.25~50 ＜250 5.5×2 9-180 3.1
ZK1437 5.25 0.25~50 ＜250 5.5×2 12-250 3.2
ZK1445 6.3 0.25~50 ＜250 7.5×2 12.6-252 4.1
ZK1637 6 0.25~50 ＜250 5.5×2 12-240 3.5
ZK1645 7.32 0.25~50 ＜250 11×2 95-280 4.5
ZK1837 6.75 0.25~50 ＜250 11×2 90-270 5
ZK1845 8.1 0.25~50 ＜250 11×2 16.2-234 5.5
ZK1852 9.45 0.25~50 ＜250 11×2 18.9-378 5.9
ZK2045 9 0.25~50 ＜250 11×2 16.2-324 6
ZK2052 10.5 0.25~50 ＜250 11×2 21-420 6.4
ZK2060 12 0.25~50 ＜250 15×2 24-480 7.6
ZK2445 10.8 0.25~50 ＜250 15×2 21.6-432 7.4
ZK2452 12.6 0.25~50 ＜250 15×2 25.2-504 8.2
ZK2460 14.4 0.25~50 ＜250 15×2 28.8-576 9.2
ZK3045 13.5 0.25~50 ＜250 15×2 27-540 10
ZK3052 15.75 0.25~50 ＜250 22×2 31.4-628 10
ZK3060 18 0.25~50 ＜250 22×2 17.5-525 11
ZK3645 16.2 0.25~50 ＜250 22×2 37.8-756 12.2
ZK3652 18.9 0.25~50 ＜250 22×2 43.2-864 13.4
ZK3660 21.6 0.25~50 ＜250 22×2 43.2-864 14.3
ZK3675 27 0.25~50 ＜250 30×2 54-1080 17.1
2ZK1022 2.25 0.25~50 ＜250 4×2 4.5-90 3
2ZK1230 3.6 0.25~50 ＜250 5.5×2 7.2-144 3.7
2ZK1237 4.5 0.25~50 ＜250 7.5×2 9-180 4.4
2ZK1437 5.25 0.25~50 ＜250 7.5×2 12-250 5
2ZK1445 6.3 0.25~50 ＜250 15×2 12.6-252 6.9
2ZK1637 6 0.25~50 ＜250 15×2 12-240 6.9
2ZK1645 7.32 0.25~50 ＜250 15×2 95-280 8.6
2ZK1837 6.75 0.25~50 ＜250 15×2 90-270 7.9
2ZK1845 8.1 0.25~50 ＜250 15×2 16.2-234 8.1
2ZK1852 9.45 0.25~50 ＜250 15×2 18.9-378 9
2ZK2045 9 0.25~50 ＜250 15×2 16.2-324 9.1
2ZK2052 10.5 0.25~50 ＜250 22×2 21-420 10.1
2ZK2060 12 0.25~50 ＜250 22×2 24-480 10.8
2ZK2445 10.8 0.25~50 ＜250 22×2 21.6-432 11
2ZK2452 12.6 0.25~50 ＜250 22×2 25.2-504 12.5
2ZK2460 14.4 0.25~50 ＜250 22×2 28.8-576 13.5
2ZK3045 13.5 0.25~50 ＜250 30×2 27-540 15.4
2ZK3052 15.75 0.25~50 ＜250 37×2 31.4-628 16.9
2ZK3060 18 0.25~50 ＜250 37×2 17.5-525 18.2
2ZK3645 16.2 0.25~50 ＜250 45×2 37.8-756 21
2ZK3652 18.9 0.25~50 ＜250 45×2 43.2-864 24
2ZK3660 21.6 0.25~50 ＜250 45×2 43.2-864 25.4
